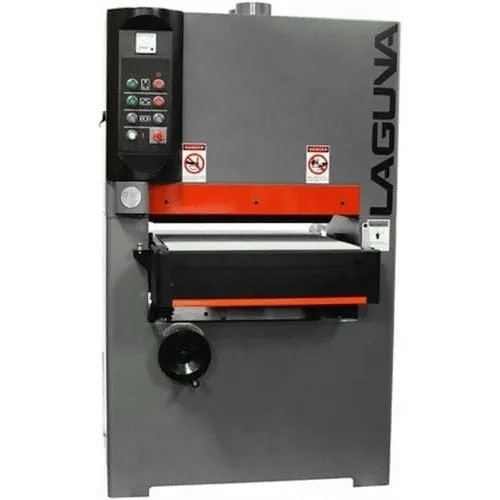

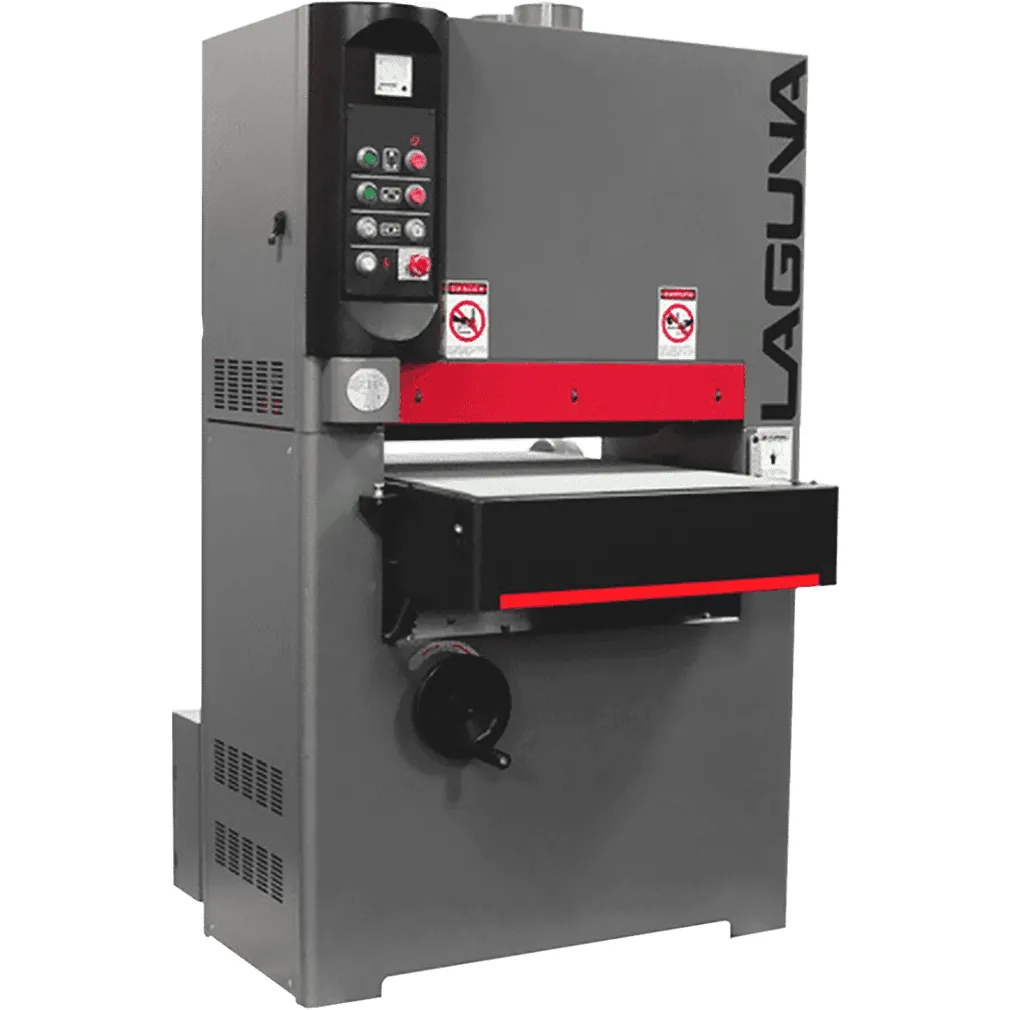

Name: Laguna Tools Industrial Compact 37" Metal Wide Belt Sander - MW37C
SKU: 396909

Laguna Tools Industrial Compact 37' Metal Wide Belt Sander - MW37C

Offering metal deburring, sanding, and texturing, the Compact Line of Metal Wide Belt Sanders from LAGUNA gives a new level of production perfection. With a 7.5 to 10 hp motor (Single Phase), 25″ to 37″ machine widths, electronic table elevation control, you can get the exact finish you need.

Features:

Single Belt
10hp Main Motor (Single Phase)/1HP Feed Speed
Belt Size: 37″ x 60″
Sanding Max Width: 36-½″
Sanding Drum Diameter: 8″
Dust port size: 4″ x 3

An Overview Of The ENDURO Metal Sanders

Follow along as John Geyen, our resident Sanding Expert, gives a detailed overview of the machines, their mechanical specs, and before and after examples from heavy dross removal to fine polishing.

What The ENDURO Can Do

From cleaning heavy dross to achieving a spotless finish, the ENDURO is the only choice for metal sanding and deburring.

Specs

MW37C

Main Motor: 10HP (Single)
Feed Speed: 1HP (Single)
Table Lifting Motor: 0.33 (Single)
Programmable Logic Control: YES (Digital Readout)
Automatic Thickness Control: YES (Thicknessor)
Max Sanding Height: 6″
Min Sanding Height: 26 Gauge
Max Sanding Width: 37″
Sanding Belt Size: 60″
Diameter of Sanding Drum: 8″
Length of Sanding Drum: 36-½″
Sanding Drum RPM: 1720
2 Speed Settings (Low/High): 15 & 30 FPM
Dust Port Size: 5″
Number of Dust Ports: 3
Foot Print: 51-½1/2' x 19″
Conveyor Height At Lowest Setting: 31.9″ (Table Height 37.4″)
Cabinet: Steel YES
Operating Air Pressure: 60PSI
Sanding Belt Oscillation: YES
Sanding Belt Motor Break: YES
CSA: Fully YES
Net Weight: 1609lbs
Ship Weight: 1829lbs
