Name: KANG Industrial 3-IN-1/40 Sheet Metal Fabrication Machines, Guillotine, Brake and Rolling Machine, 1016mm Combination Sheet Metal Brake
SKU: 350744

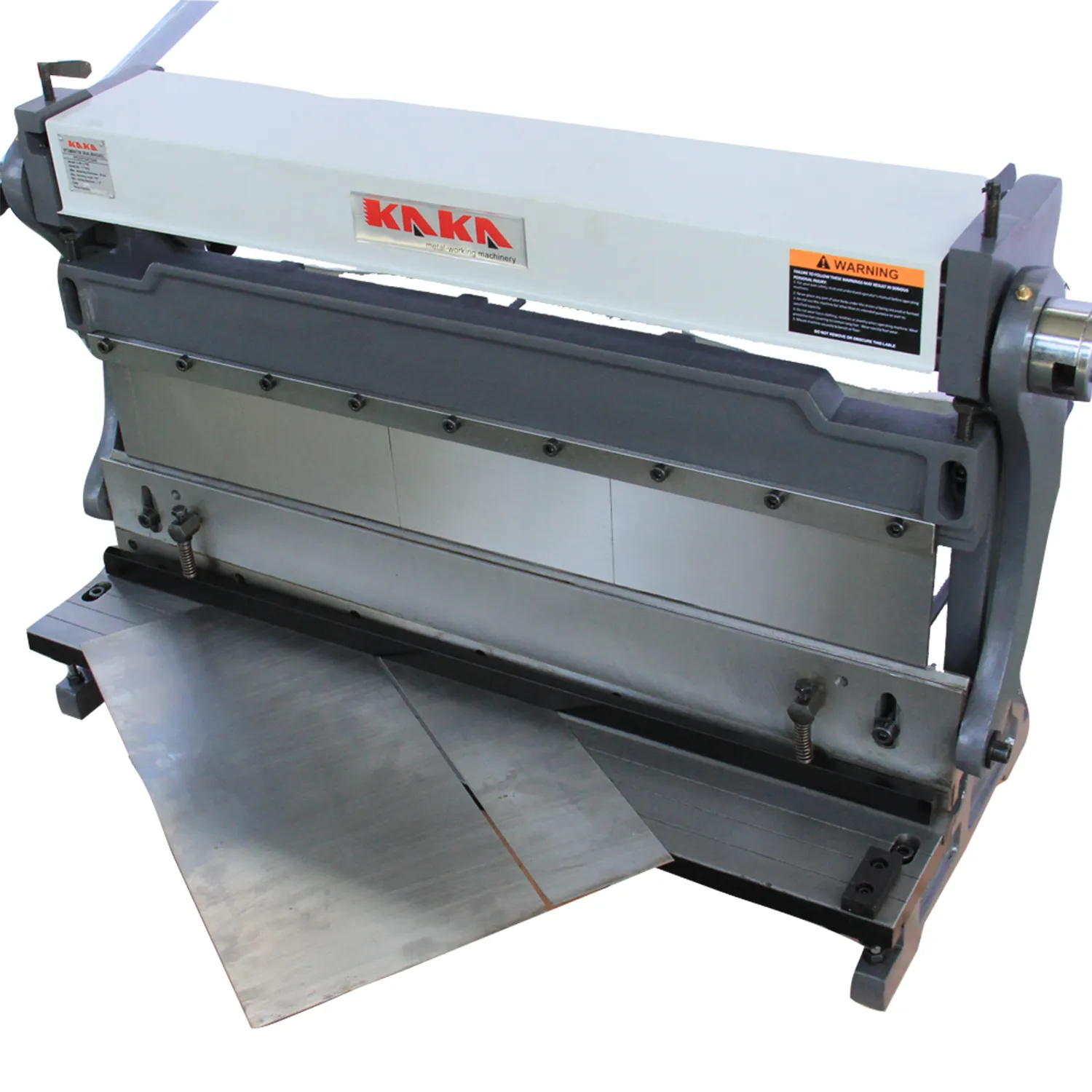

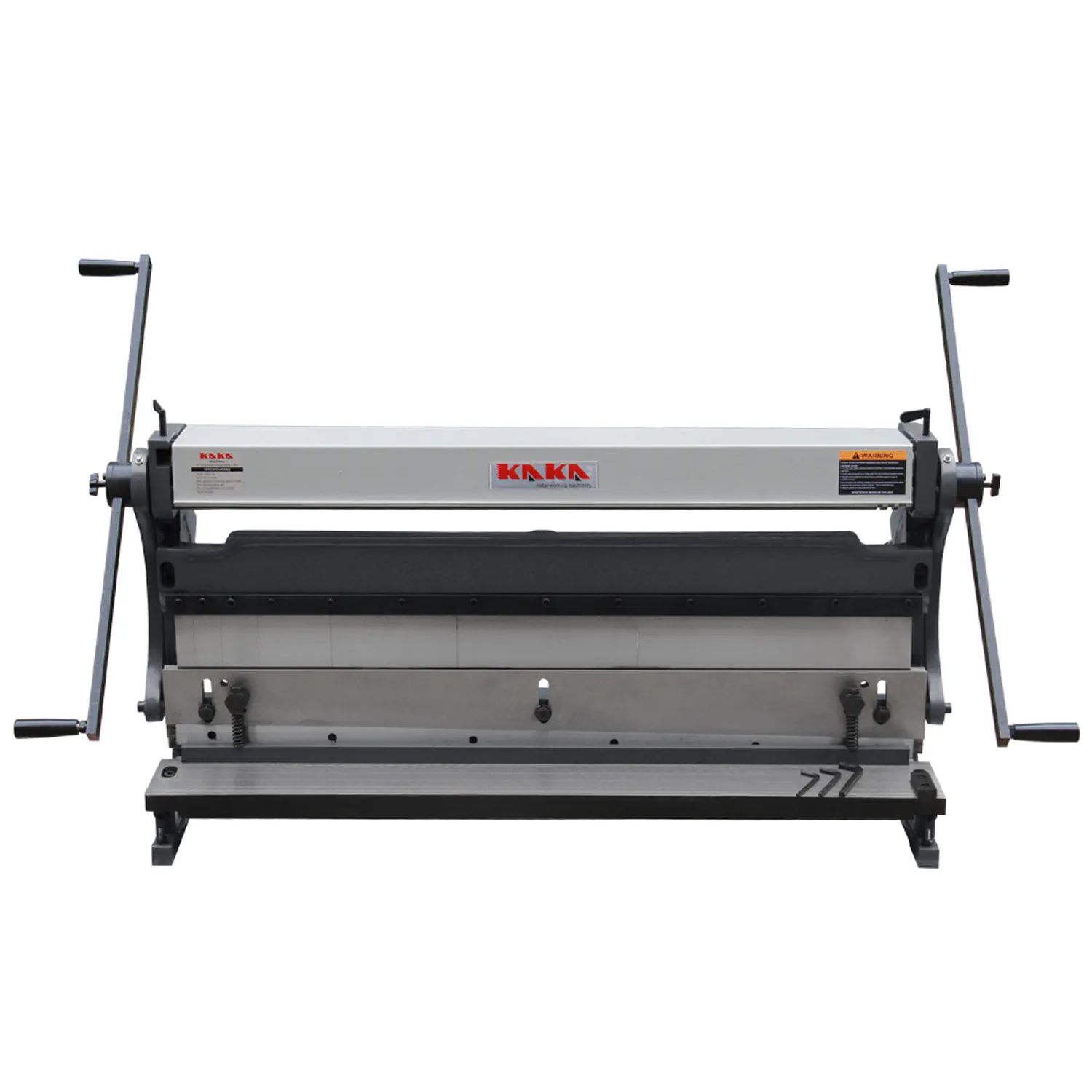

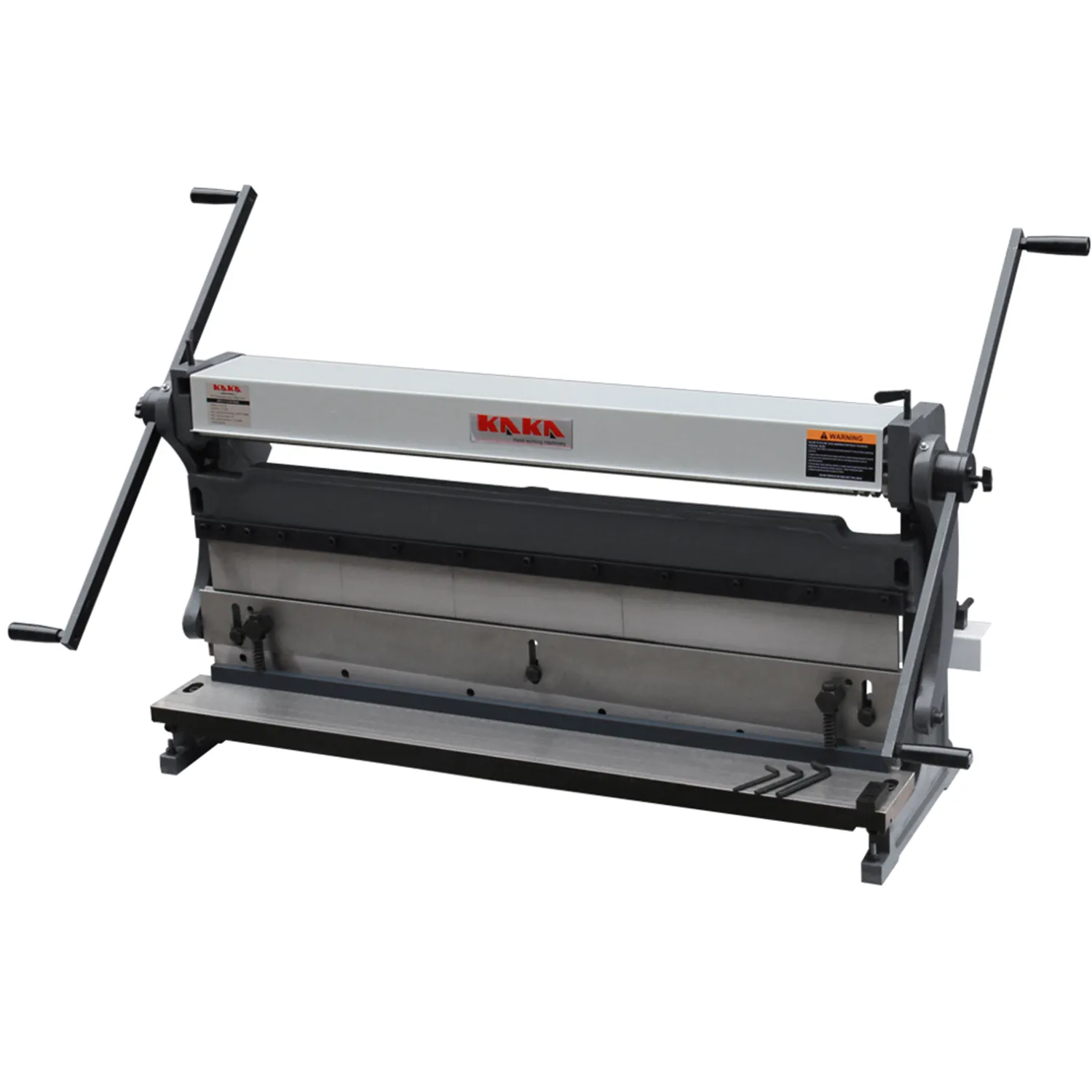

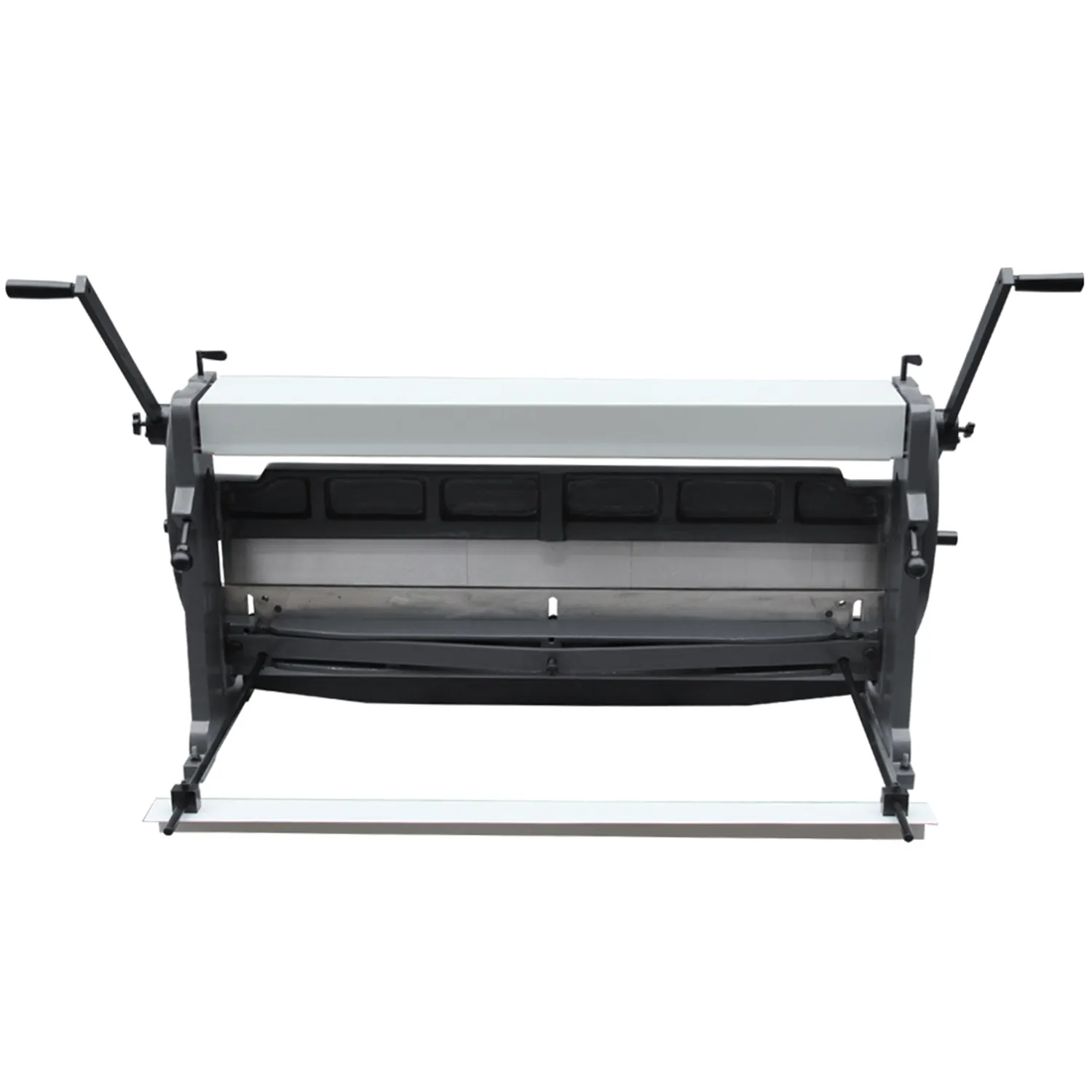

KANG Industrial 3-IN-1 Combination Machine, Pressbrake, Guillotine & Roll

The 40 inches (1016mm) Width combination sheet metal fabrication tools for shops with limited space or home use, could mount to a bench or stand (contact us for the optional stand)

Features

1016mm working width for rolling, bending, and shearing

Max. capacity of 1.0 mm mild steel plate

Cast iron structure

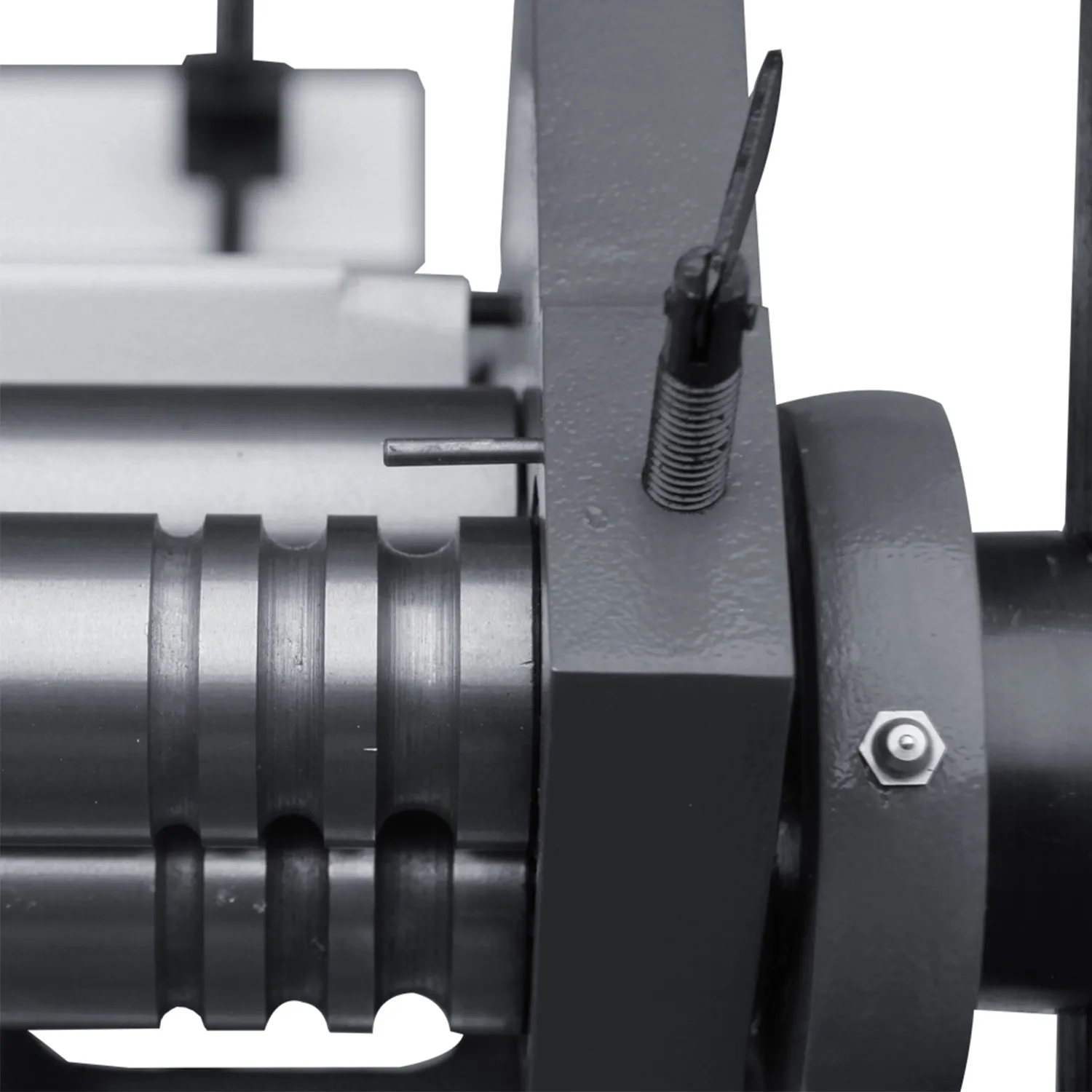

Create a sheet metal roll. Min. 40mm. And Rolls with 3 grooves can form wire or small round stock

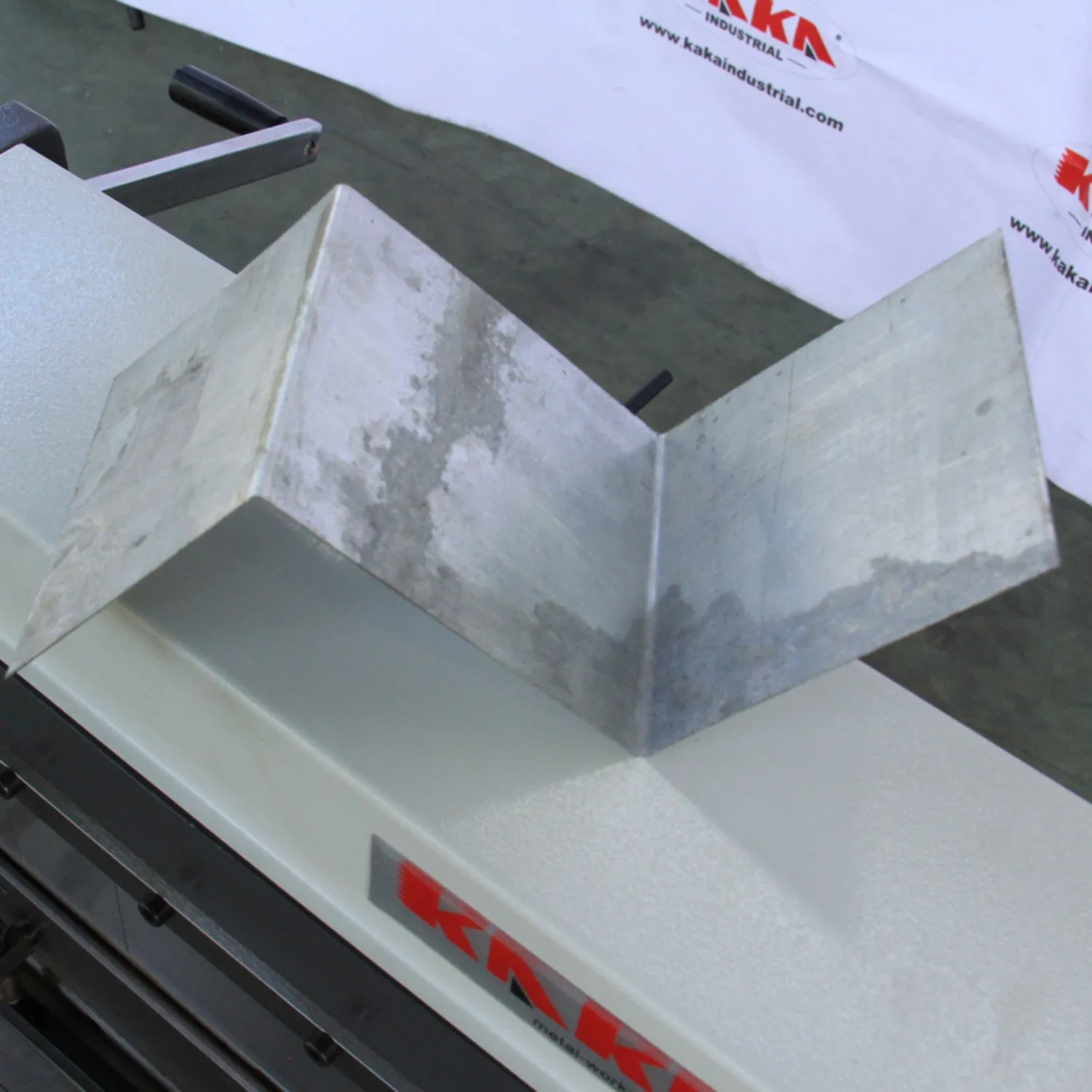

Bending up to 90 degrees, segment fingers for pan box brake

Shearing part with spring-loaded clamps to hold the material down.

The handles on both sides allow two operators to combine their force and make the machine work easier

Only one function could be used at one time.

Specification

SKU	171004
Model	3-IN-1/40
Bed width	1016 mm
Max. shearing thickness	1.0 mm
Max. bending thickness	1.0 mm
Max. bending angle	90°
Max. rolling thickness	1.0 mm
Min. rolling dia.	40 mm
Packing size	135x45x72 cm
N.W./G.W.	195/212 kg
